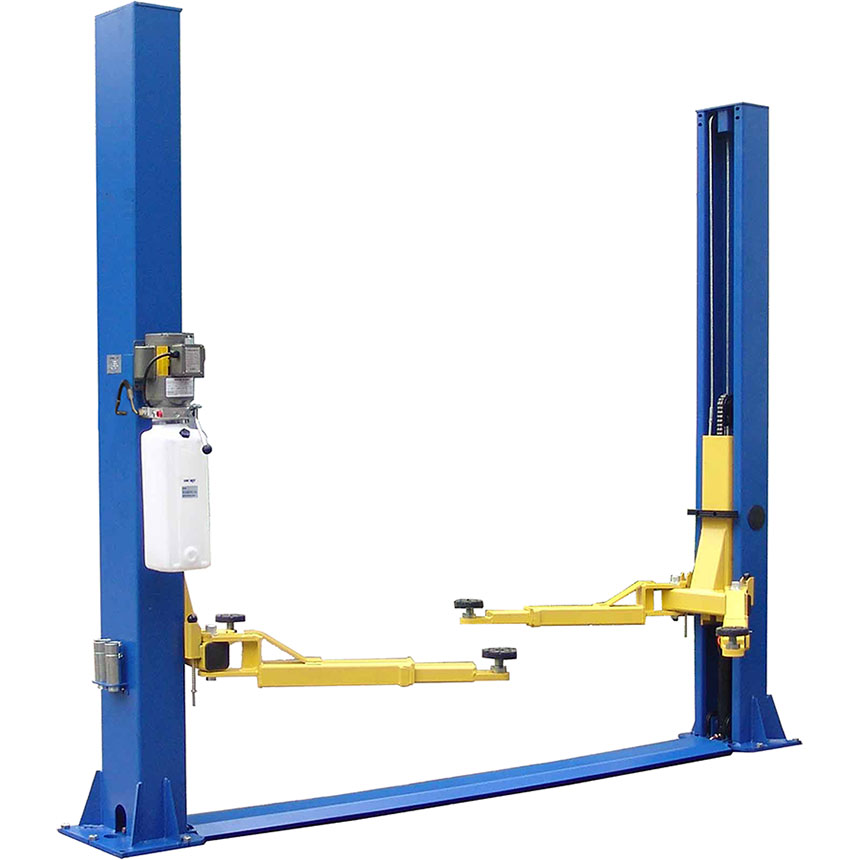

9,000 lb. Lifting Capacity
This lift has the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift.
- 9,000 lb. lifting capacity
- Dual cylinders with low friction chain rollers
- Low profile automatic arm restraints
- 1-1/2" and 5" stackable drop-in height adapters
- Powder-coated paint finish
- Free mounting hardware
Specifications
- Lifting Capacity: 9000 lbs
- Overall Height: 111.9"
- Width Overall (w/ Power unit): 138"
- Max Lift Height: 72"
- Width Between Columns: 113.6"
- Min Pad Height: 4"
- Drive Thru Clearance: 96"
- Lifting Speed: 50 s
- Lift Type: Symmetric, Clear Floor
- Front Arm Reach: 31" - 45"
- Rear Arm Reach: 31" - 45"
- Max Load Per Arm: 2250 lbs.
- Cable Diameter: 3/8"
- Column Size: 7.25' x 10.87"
- Column Steel Thickness: 5 mm
- Carraige Steel Thickness: 5 mm
- Arm Steel Thickness: 6mm
- Power: 220V, 20A, 1 PH
- Shipping Weight: 1370 lbs.
Ships by truck freight. Forklift required at time of delivery.
