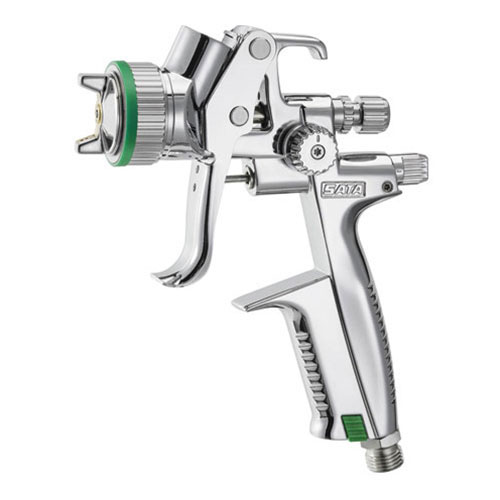

SATAminijet® 4400-B 1.4 SR Nozzle HVLP Paint Spray Gun

SATA

Authorized Sata Distributors such as I/D/E/A, Inc. are not allowed to sell Sata products over the internet.  Beware of sites that claim to offer genuine Sata items.  They are not authorized and you may be buying a fake or an item that won't be covered under Sata's warranty.

The SATA minijet 4400 B is the gun you need for finishes in difficult areas. The gun comes with special SR nozzles that work great for spot repairs on vehicles. This spray gun can be used with all modern paint system including waterborne paints. The spray gun comes with an air micron meter and a .3L disposable cup.

The ergonomically-shaped handle allows for perfect balance when using, and you can make even the minutest of adjustments on the gun with gloves on. The spray gun is sturdy and long-lasting. You can even adjust the spray fan with a 3/4 turn. The body of the gun is corrosion-resistant, and the sturdy air cap is made of chrome-plated brass. The fluid tip and paint needle are made of tempered stainless steel. While painting, the trigger protects the paint needle from overspray, prolonging the lifetime of paint needle sealing. The spray gun can be used with all three RPS cup sizes without adapters. The large connection makes cleaning of the material passages safe and easy.

Key Features of Sata 4400 B Paint Guns

• Great for small paint jobs and high precision work
• Chrome finish is corrosion resistant
• RP and HVLP Styles available
• Nozzles Sizes: 0.8, 1.0, 1.2 or 1.4

Technical Specifications for HVLP Models

• Air consumption: 4.2 cfm
• Maximum operating temperature: 50°C
• Maximum operating overpressure: 145 psi
• Weight: 293 g
• Air inlet: G 1/4

Technical Specifications for RP Models

• Air consumption: 7.1 cfm
• Recommended Inlet Pressure: 7 - 36 psi
• Maximum operating temperature: 50°C
• Maximum operating overpressure: 145 psi
• Weight: 293 g
• Air inlet: G 1/4
• Size: 0.8 SR - 1.2 SR

Applications for Spray Guns

• 1.0mm: light industrial, hobby, spot repair, base coat, clear coat
• 1.3mm: Base coat, high solid, single stages, clear coat
• 1.4mm: Base coat, clear coat, single strages, low solid clear, clear coat
• 1.5mm: Base coat, sealers, enamals, medium to high viscosity, clear coat
• 1.8mm: Primer, high viscosity
