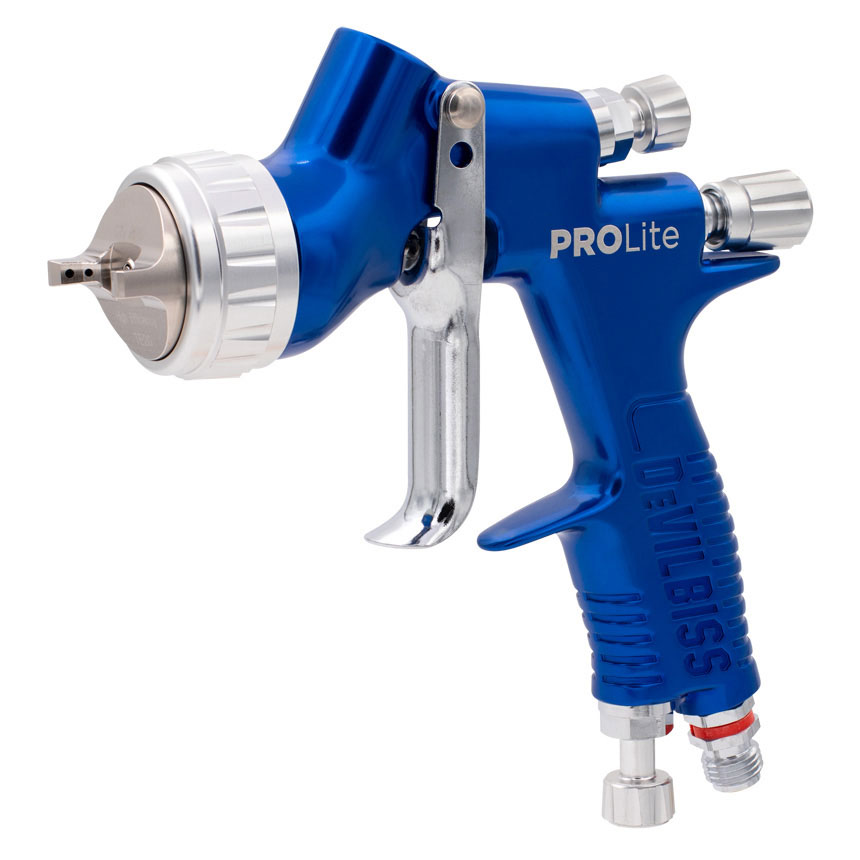

DeVilbiss PROLite Gravity HVLP & High Efficiency Gun 905045

Lightweight design delivers a uniform spray pattern and atomization distribution for an exceptional quality finish that professional painters demand

• Range of advanced air cap technologies for excellent application performance with the latest waterborne and solventborne coatings
• Ergonomic handle design with reduced trigger travel to decrease operator fatigue
• Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings
• Drop-forged aluminum, anodized gun body with removable air baffle for a longer working life
• Stainless steel nozzles and needles
• Plated brass air caps
• Includes HAV-555 gauge

Specifications

• Air Cap: TE20 (HE) & HV30 (HVLP)
• Atomization Type: High Efficiency / HVLP
• Needle/Nozzle: 1.2, 1.3 & 1.4
• Rec. Inlet Pressure: TE25: 22-29 PSI / HV30: 14-25 PSI
• Max. Air Consumption: 12.4 / 15.5 SCFM
• Fan Pattern Size: TE25: 10.5"-11" / HV30: 11.5-12.5"
• Cup Type: No Cup
• Gauge: HAV-555
• TE25 Applications: Clearcoats
• HV30 Applications: Basecoats,Clearcoats
• Air Inlet: 1/4"
• Gun Body: Anodized Aluminum
