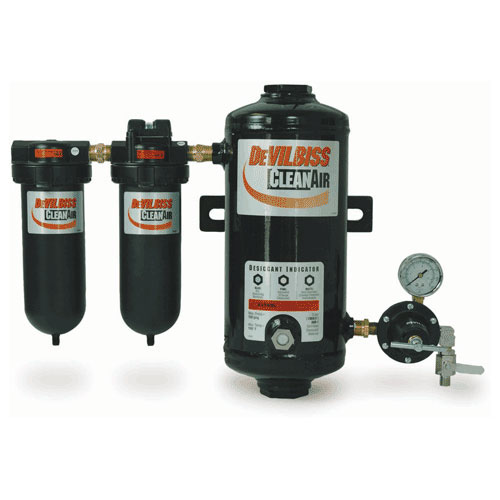

Buying the DeVilbiss® CleanAir 3-Stage Desiccant Air Dryer System for your shop may perhaps be one of the best decisions you make for your business. It is by far one of the top systems in the market today because it is known to eliminate any oil, water, and debris from the compressed air in your machines. This paint system will in turn improve the efficiency of your paint job. Even the minutest particles can clog tools like spray guns, and it is recommended to do a routine cleaning for superior results.
Acclaimed for thorough performance, the DeVilbiss® brand of products will help you improve your team's efficiency and productivity. Regardless of what you are painting, you can always rely on this amazing tool to give you the right finish.
This system features:
- Three filtering units
- A wall mount bracket
- A desiccant filter change indicator
The first stage filter eliminates oil, water, and dirt to almost 5 microns. The second stage coalescer filter can remove the leftover oil aerosols and dirt particles to 0.1 microns, and the third stage involves a low-dusting desiccant to trap water vapor to a dew point of about -40ºF. This third stage filter has an indicator that changes color when it is ready for replacement. It features a ½" ball valve shut-off feature for easy operation. The centrifugal and coalescer filters also have an automatic bowl drain, which reduces the need for manual draining. Use the tool for low-medium production rates. Made in the USA, the DeVilbiss® CleanAir 3-Stage Desiccant Air Dryer System will help you save some money and provides ultimate satisfaction with your paint jobs.
Key Features of the DeVilbiss® CleanAir 3-Stage Desiccant Air Dryer System:
- Eliminates oil, water, and debris from compressed air
- Three filtering units for maximum efficiency
- ½" ball valve shutoff feature for easy operation
- Automatic bowl drain helps in eliminating manual draining
Technical Specifications
- Centrifugal Filtering Capacity: 5 micron
- Coalescer Filtering Capacity: .01 micron
- Flow Rate: 25 cfm
- Regulated Press. Range: 0-125 psi
- Max. Air Inlet Press.: 150 psi
- Max. Operating Temp.: 150º F
- Bowl Capacity: 17 oz.
- Main Air Inlet: 1/2" NPT (F)
- Regulated Outlets: (1) 1/4" NPS (M)
- Air Regulators Included: (1) HAR-507
- Air Gauges (0-160 psi) 1
- Replacement Filters: HAF-6, HAF-28, DAD-1
- 13-0041 (HAF-502) Water Separator Filter Specifications
- Air Inlet and Outlet ½" NPT(F)
- Flow Capacity 100 CFM
- Maximum Operating Pressure 150 PSIG (10.3 Bar)
- Maximum Temperature 150°F (65.6°C)
- Automatic Drain Standard
- Filter 5 micron
- HAF-505 Oil Coalescing Filter Specifications
- Air Inlet and Outlet ½" NPT(F)
- Air Flow Capacity 55 CFM
- Maximum Operating Pressure 150 PSIG (10.3 Bar)
- Maximum Temperature 150°F (65.6°C)
- Automatic Mechanical Drain Standard
- Pressure Differential Indicator Standard
- Filter 0.01 micron
- Desiccant Air Dryer Specifications
- Dryer Air Inlet and Outlet ½" NPT(F)
- Flow Capacity 25 CFM
- Maximum Operating Pressure 150 PSIG (10.3 Bar)
- Maximum Temperature 150°F (65.6°C)
- Humidity Indicator Standard Dryer
- Water Vapor Removal And Dryer -40°F Dew Point
- HAR-507 Air Regulator Specifications
- Inlet 3/8" NPT(F)
- Outlet ¼" NPT(F) (3 each)
- Flow 60 CFM
- Maximum Operating Pressure 150 PSIG (10.3 Bar)
- Maximum Temperature 120°F (48.9°C)
- VA-595 Main Air Supply Shut-Off Valve Specifications (not shown)
- Air Inlet and Outlet ½" NPT(M)
- Maximum Operating Pressure 175 PSIG (12.0 Bar)
