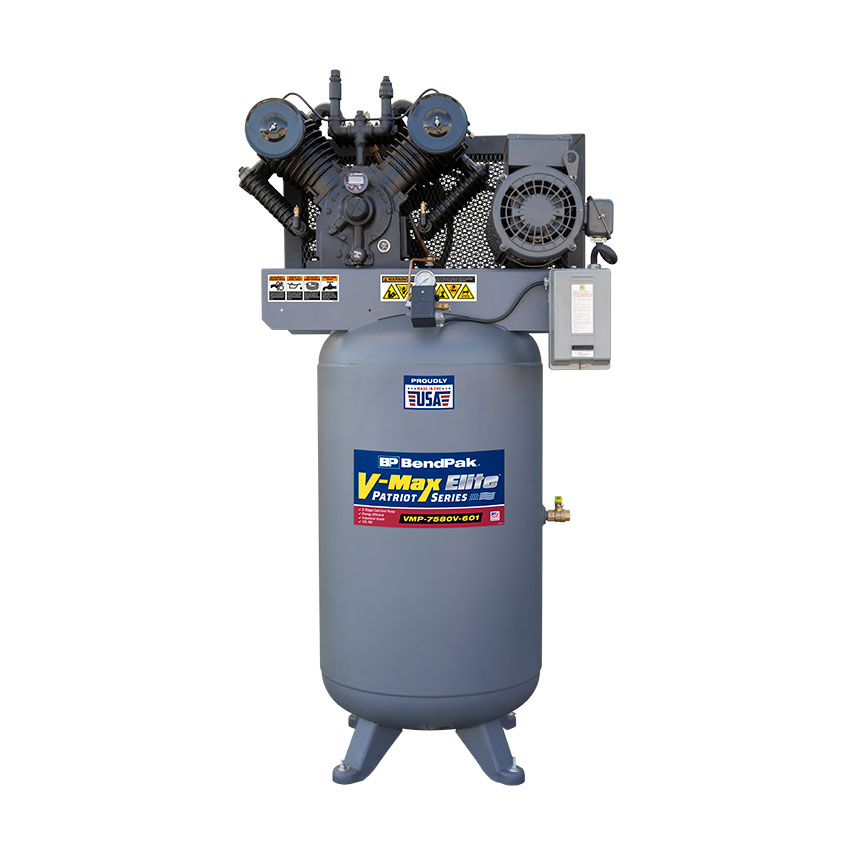

BendPak V-Max Elite™ Air Compressor

BendPak V-Max Elite™ Air Compressor

Shop Equipment

SKU #1801448
Availability: Out of Stock
Price: $4,195.00
$4,195.00
FREE Shipping*
Within the 48 Contiguous United States

V-MAX ELITE ADVANTAGES:

  • 7.5 HP or 10 HP energy-efficient motor
  • Extra-quiet, low-RPM pump - Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
  • Proven air-cooled design is economical, reliable and environmentally friendly.
  • Two compression rings and one oil control ring provide excellent oil control and high efficiency air delivery
  • Dual drive belts require less belt tension resulting in less load on pump bearings, longaer belt life and low vibration
  • Fully-enclosed belt guard
  • Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with a pressed-in sleeves
  • ASME rated tank
  • Large surface area and cooling fins on cylinders and forced-air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
  • Tapered roller main bearings provide full contact and support of the crankshaft and needle-type piston pin bearings properly distribute bearing loads
  • Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
  • Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble-free operation
  • ASME rated safety valve protects the compressor from overpressure and safeguards the operator
  • Balanced flywheel and counterbalanced crankshaft results in nearly vibration-free operation
  • Readily accessible disc-valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
  • Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance.
  • Oversized ductile iron crankshaft provides extra strength and longer wear
  • High-density, die-cast aluminum alloy rods minimize reciprocating weight
  • Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap.
  • Automatic pressure switch provides auto start and stop
  • Integrated pressure unloader valves are built into the intake valve assembly on the compressor head reducing internal pump heat from initial start-up compression
  • Pressure gauge with service valve
  • Oversize replaceable air filters

    • *Ships by truck freight. Forklift required at time of delivery,If no Forklift is available you can request a liftgate for an additional charge.
    $100 Limited Access Fee for deliveries to schools.
