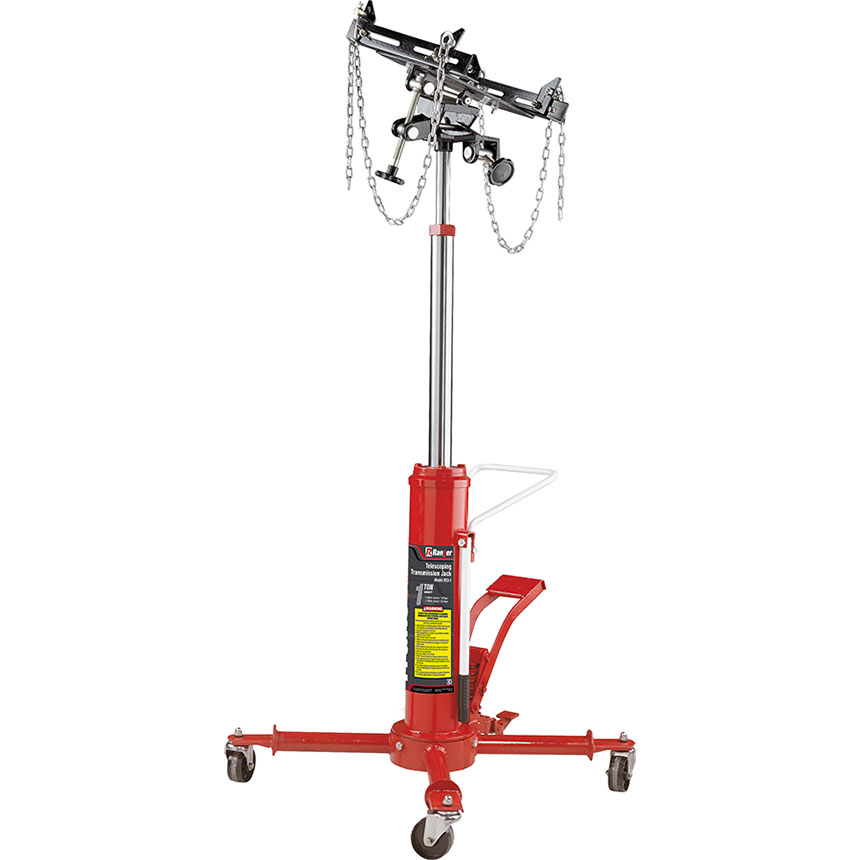

The TransJak's heavy lifting capacity and over 200 pounds of durable construction lets you safely and easily remove, transfer and install vehicle transmissions, transaxles and other drive-train components from passenger cars, vans and light trucks. It's the heaviest built transmission jack on the market and the preferred equipment choice of transmission service professionals worldwide. Compare this unit with any other brand on the market and you will see why it's America's most popular transmission jack.
- Foot operated pump
- Alloy-plated ram
- Two-stage design
- Extra wide base
- Safety overload system
- Fully adjustable saddle tilts four ways
- Heavy-duty steel swivel casters
- Two, push/pull handles
- Heavy-duty chain anchors
- Heavy steel construction for maximum durability
- Sealed hydraulic unit prevents contamination
- Double-sealed hydraulics for longer service life
- Heavy-duty chain anchors keep loads secure
- Steel roller bearings are included underneath the table and on the ends of the adjustment screw to minimize friction and allow for effortless table adjustment even when loaded
- Fully adjustable universal saddle adapts to passenger car and light truck automatic transmissions and transaxle assemblies
- Fine-thread adjustment screws with oversized knobs make adjusting the table a cinch
- Two-stage design provides an extended lifting height of over 79"
- Hardened chrome-moly ram prohibits rust from entering hydraulic system
- Convenient pull handle for extra handling capability
- System overload system prevents the jack from being used beyond its rated capacity
- Extra-wide base and four heavy-duty swivel bell bearing casters provides a low center of gravity and exceptional maneuverability
Specifications:
- Lifting capacity – first stage: 2,000 lbs. / 907 kg
- Lifting capacity – second stage: 1,000 lbs. / 454 kg
- Lowered height: 37" / 940 mm
- Raised height: 71" / 1,803 mm
- Base dimensions: 39" x 39" / 991 mm x 991 mm
- Shipping weight: 222 lbs. / 100 kg
- Shipping dimensions: 17" x 25" x 39" / 432 mm x 635 mm x 991 mm
