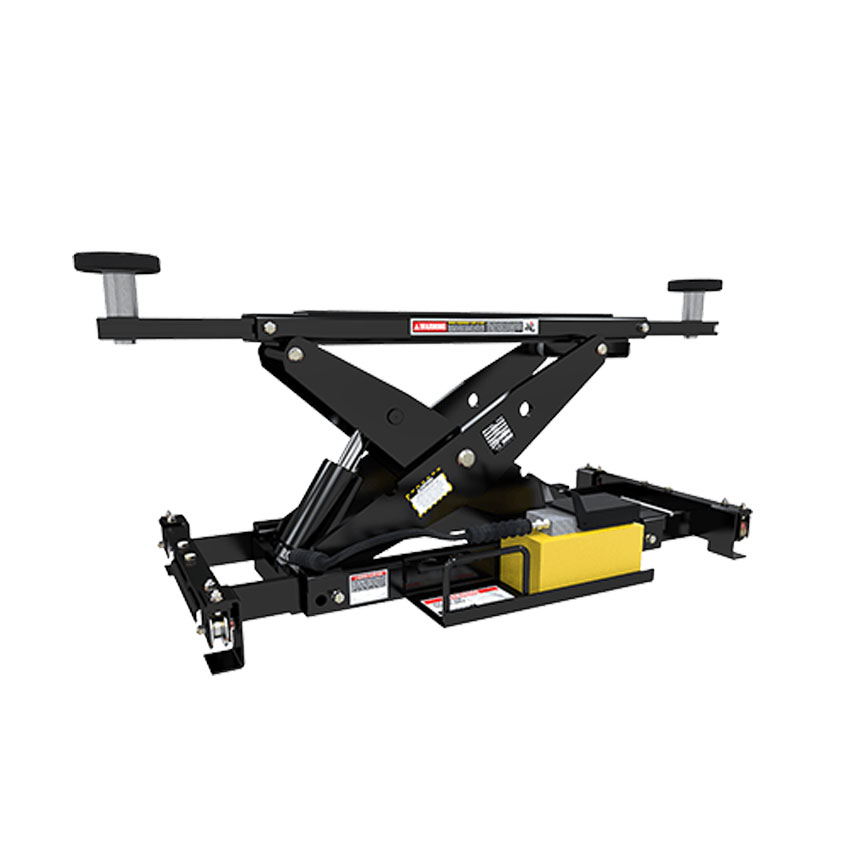

BendPak 6,000 Lbs. Rolling Bridge Jack RJ6W

Shop Equipment

SKU #1801447
Availability: Out of Stock
Price: $2,075.00
$2,075.00

FREE Shipping in Contiguous USA*.
All other will be contacted with shipping costs before order is processed.

Your auto body shop needs the BendPak 6,000 Lbs. Rolling Bridge Jack that provides ultimate jacking speed and convenience necessary for service jobs. With the ability and versatility to raise to 2 or 4 wheels off the runway, this jack works great for suspension and brake jobs. The rollers are capable of positioning anywhere under the vehicle. The telescoping roller design allows the runways to be adjusted for a variety of tread widths. You can move this extremely portable jack when you need space. The stackable pad adapters provide much-needed clearance.

Key Features of the BendPak 6,000 Lbs. Rolling Bridge Jack:

  • The jack is specifically designed for the HD-12 four post lift series
  • 6,000 lb lifting capacity
  • Rubber contact pads
  • High Pressure Air Hydraulic power unit
  • Stackable Adapters
  • Optional Air line kit. Call for details
  • Fits Bend-Pak lifts ONLY

Technical Specifications

  • Lifting Capacity 6,000 lbs. (2,721 kg)
  • Suitable Lift Model(s) XR-12000 Series
  • Time to Full Rise: 55 seconds
  • Pump: Air/Hydraulic
  • Air Pressure: 125 PSI (10-25 CFM)
  • Max. Operating Hydraulic Pressure: 3,370 PSI
  • Power Requirement: None

Min. Drive-Over Height*

  • Pad Only: 1.25" (32 mm)
  • Pad + 2.75" Adapter: 4" (102 mm)
  • Pad + 5.5" Adapter: 6.75" (171 mm)

Max. Lifting Height*

  • Pad Only: 12" (305 mm)
  • Pad + 2.75" Adapter: 14.75" (375 mm)
  • Pad + 5.5" Adapter: 17.5" (445 mm)

Reach

  • Support Base Width: 36.25" (921 mm) - 47.25" (1,200 mm)
  • Max. Arm Reach: 56" (1,422 mm)
  • Min. Arm Reach: 42" (1,067 mm)

*Shipping Information:

  • Additional $80 charge for residential delivery.
  • Forklift required at time of delivery, If no Forklift is available you can request a liftgate for an additional charge
  • $100 Limited Access Fee for deliveries to schools.
Ships by Ground Only from manufacturer via Truck Freight. Next Day & Second Day Air Shipping Not Available.
