- Compatible with solvent & waterborne paints
- Superior atomization – Delivers 75% transfer efficiency
- Large pattern designed for great coverage, optimal overlapping
- 33% faster application of paint
- Forged body provides longer tool life
- Anodized body for corrosion protection
- Slick finish for faster & easier cleaning
- Internal coated passages
- Stainless steel needle and fluid tip
- Lightweight - 0.7 lbs.
- Low overspray (bounce back)
- Great transfer efficiency
- Innovative High Efficiency (HE) advanced technology
• Quick Thread Technology
- 1 Turn to lock/unlock the air cap
- 3 Turns to lock/unlock the fluid tip
- Wide threads for easy cleaning
- M16*P1.5 female thread fluid joint
- Compatible with most traditional and disposable cup systems
- Soft trigger pull to reduce fatigue
- Precise lubricated adjustment knobs for better control
- Innovative CNC machining to avoid the need for gaskets behind the fluid tip

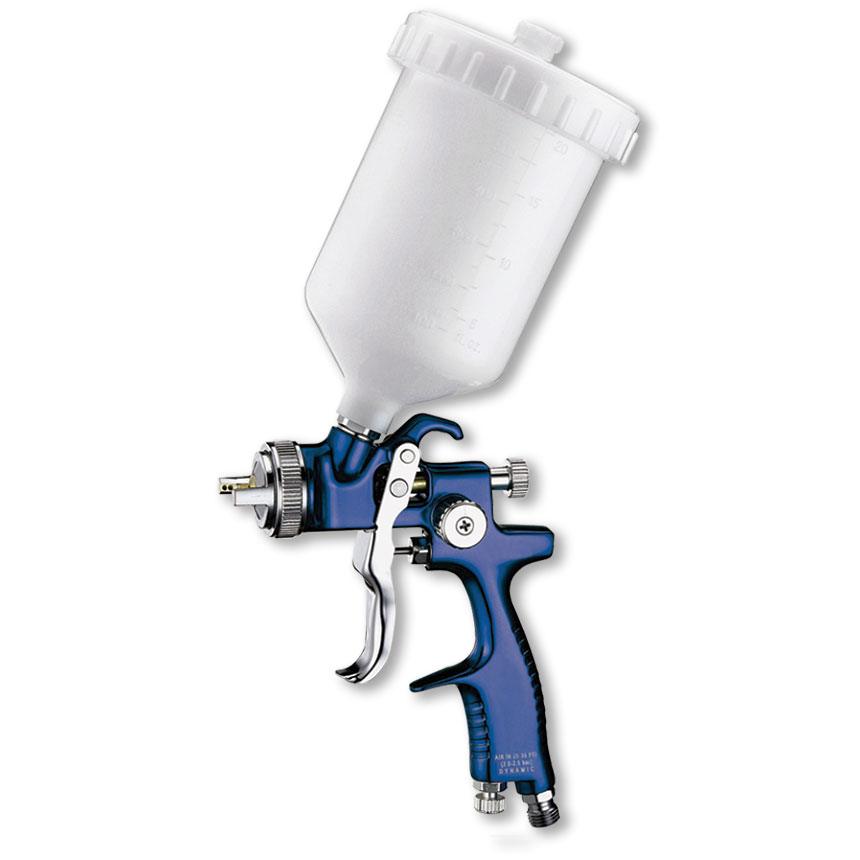

Specifications of EuroPro High Efficiency/High Transfer Spray Gun:
Nozzle Sizes: 1.3mm, 1.5mm, 1.7mm, 1.9mm
Cup Capacity: 600ml
Operation Pressure: 29 psi
Gun Dimensions: 7"W x 5-34"H (175mm x 145mm)
Gun Weight: 0.7 lb.
Avg. Air Consumption: 10.5 - 12.5 cfm
Air Inlet Thread NPT: ¼"
Required Compressor: 3 – 5hp
Max. Pattern at 6" to 8" Distance: 11" - 13" (280-330mm)
Air Hose I.D. Size: 6 - 8mm
Shipping Weight: 2.0 lbs.
Stock/Dropship/LTL: DS – Will arrive within 5 to 7 days after ordering.
Previous SKU# EQ M0107
